Java中的线程池溢出，是个比较难诊断的问题。它的成因是多个任务（比如HTTP请求）等待执行，因为每个thread在一个时间点上只能执行一个task，如果线程池最多可以容纳20个线程，涌进来30个任务，那么只有20个任务才能得到执行，剩下的10个必须等待池中出现闲置的线程。如果有一些执行的任务很耗时，后面的任务将长时间得不到线程资源供执行，线程池溢出的问题就会发生。
很多web服务器都提供了线程池的技术，可以动态扩展，但都有一定的限额。下面的代码演示线程池溢出的问题，代码相对复杂，但能很好地解释这个现象。
代码演示
定义一个ThreadPool的类，负责创建一组有限数量的线程，他们将被用来执行排队中的任务。注意任务的数量必须大于线程的数量。这个类的方法定义：
- ThreadPool(): 构造器初始化一组线程，这些线程都是PooledThread的实例
- runTask(): 获取一个闲置的可用的线程来执行一个任务
- getTask(): 获取下一个将要执行的任务
- close(): 强迫终止所有的线程
- join(): 停止线程，等待正在执行的任务线程自然地停止
ThreadPool定义一个内部类，PooledThread，这是具体的线程类，用来执行任务。PooledThread定义：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
private class PooledThread extends Thread {
public PooledThread() {
super(ThreadPool.this, "Zigzag_Thread-" + (threadID++));
}
public void run() {
while (!isInterrupted()) {
// get a task to run
Runnable task = null;
try {
task = getTask();
} catch (InterruptedException ex) {
}
// if getTask() returned null or was interrupted,
// close this thread by returning.
if (task == null) {
return;
}
// run the task, and eat any exceptions it throws
try {
task.run();
} catch (Throwable t) {
uncaughtException(this, t);
}
}
}
}
完整的线程池定义：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
class ThreadPool extends ThreadGroup {
private boolean isAlive;
private LinkedList taskQueue;
private int threadID;
public ThreadPool(int numThreads) {
super("Zigzag_ThreadPool");
setDaemon(true);
isAlive = true;
taskQueue = new LinkedList();
for (int i = 0; i < numThreads; i++) {
new PooledThread().start();
}
}
public synchronized void runTask(Runnable task) {
if (!isAlive) {
throw new IllegalStateException();
}
if (task != null) {
taskQueue.add(task);
notify();
}
}
protected synchronized Runnable getTask() throws InterruptedException {
while (taskQueue.size() == 0) {
if (!isAlive) {
return null;
}
wait();
}
return (Runnable) taskQueue.removeFirst();
}
public synchronized void close() {
if (isAlive) {
isAlive = false;
taskQueue.clear();
interrupt();
}
}
public void join() {
synchronized (this) {
isAlive = false;
notifyAll();
}
Thread[] threads = new Thread[activeCount()];
int count = enumerate(threads);
for (int i = 0; i < count; i++) {
try {
threads[i].join();
} catch (InterruptedException ex) {
}
}
}
private class PooledThread extends Thread {
public PooledThread() {
super(ThreadPool.this, "Zigzag_Thread-" + (threadID++));
}
public void run() {
while (!isInterrupted()) {
// get a task to run
Runnable task = null;
try {
task = getTask();
} catch (InterruptedException ex) {
}
// if getTask() returned null or was interrupted,
// close this thread by returning.
if (task == null) {
return;
}
// run the task, and eat any exceptions it throws
try {
task.run();
} catch (Throwable t) {
uncaughtException(this, t);
}
}
}
}
}
客户执行类
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
public class OutOfThread {
public static void main(String[] args) {
if (args.length != 2) {
System.out.println("Tests the ThreadPool task.");
System.out.println("Usage: java OutOfThread numTasks numThreads");
System.out.println(" numTasks - integer: number of task to run.");
System.out.println(" numThreads - integer: number of threads in the thread pool.");
return;
}
int numTasks = Integer.parseInt(args[0]);
int numThreads = Integer.parseInt(args[1]);
// create the thread pool
ThreadPool threadPool = new ThreadPool(numThreads);
// run example tasks
for (int i = 0; i < numTasks; i++) {
threadPool.runTask(createTask(i));
}
// close the pool and wait for all tasks to finish.
threadPool.join();
}
/**
* Creates a simple Runnable that prints an ID, waits a long time, then
* prints the ID again.
*/
private static Runnable createTask(final int taskID) {
return new Runnable() {
public void run() {
System.out.println("Task " + taskID + ": start");
// simulate a long-running task
try {
int i = 0;
while (i<9999999L*2000)
i++;
} catch (Exception ex) {
}
System.out.println("Task " + taskID + ": end");
}
};
}
}
执行这段代码，比如定义线程池里有3个线程，安排做5个任务。最完美的执行结果就是类似下面的，5个任务全部完成。
1
2
3
4
5
6
7
8
9
10
Task 2: start
Task 0: start
Task 1: start
Task 0: end
Task 3: start
Task 2: end
Task 4: start
Task 1: end
Task 3: end
Task 4: end
而实际的运行结果是：
1
2
3
4
5
6
E:\>java -classpath . zigzag.research.threaddump.OutOfThread 5 3
Task 2: start
Task 0: start
Task 1: start
Task 2: end
Task 3: start
在长时间里，Task 4一直分配不到空闲的线程，长时间得不到执行。这就是线程池溢出的问题。
线程分析
Thread Dump中， Zigzag_Thread-3，Zigzag_Thread-1 和 Zigzag_Thread-0 状态为 “RUNNABLE”。这个线程堆的输出结果非常良好，线程们都很正常，无法判断是否有问题。多次输出Thread Dump，就会发现一些端倪来。Zigzag_Thread-2没有出现在输出中，是因为它已经结束。可是Zigzag_Thread-4永远没有出现，因为一直轮不到它。
1
2
3
4
5
6
7
8
9
10
11
12
13
14
"Zigzag_Thread-3" prio=6 tid=0x00000000069d5800 nid=0x26b4 runnable [0x000000000744f000]
java.lang.Thread.State: RUNNABLE
at zigzag.research.threaddump.OutOfThread$1.run(OutOfThread.java:45)
at zigzag.research.threaddump.ThreadPool$PooledThread.run(OutOfThread.java:183)
"Zigzag_Thread-1" prio=6 tid=0x00000000069d5000 nid=0x11b4 runnable [0x000000000734f000]
java.lang.Thread.State: RUNNABLE
at zigzag.research.threaddump.OutOfThread$1.run(OutOfThread.java:45)
at zigzag.research.threaddump.ThreadPool$PooledThread.run(OutOfThread.java:183)
"Zigzag_Thread-0" prio=6 tid=0x00000000069d2000 nid=0x1a34 runnable [0x000000000724f000]
java.lang.Thread.State: RUNNABLE
at zigzag.research.threaddump.OutOfThread$1.run(OutOfThread.java:46)
at zigzag.research.threaddump.ThreadPool$PooledThread.run(OutOfThread.java:183)

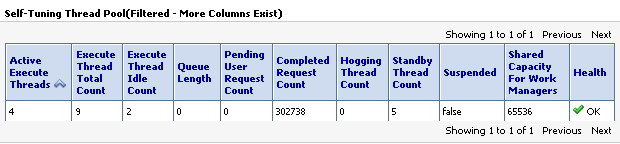

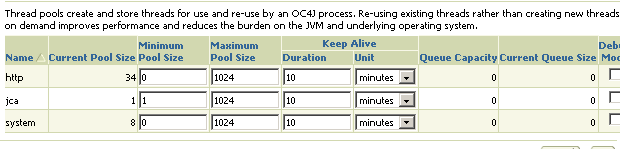

为了解决这种情况，很多web服务器都提供了对线程池的配置和监控。比如下图为Oracle Application Server以及Oracle Weblogic控制台中的Thread Pool配置。
