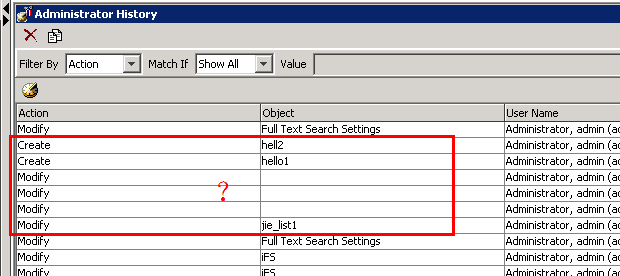

In JavaClient, Admin History records all kinds of administration actions to system for audit. These actions could be Modify Class, Add List, Remove Workflow and more. But in most cases, Admin History does not display these actions clearly. For example below records confuse us.
What object are they? Nobody can answer this question unless you analyze the database data internally. This article demonstrates how to customize a powerful SQL to list all kinds of actions in a self-explanatory way with these columns.
1
2
3
4
5
6
loginid -- user's loginid
action -- user's action like "Create", "Modify"...
object_type -- object type name, for example: attribute, class, list, personal criteria and etc.
object.name -- object name
ahd.details -- detailed action message in English language
ah.created -- created time
All the Admin history data are saved in admin_history and admin_history_details tables. admin_history_details table save detailed action message in different language. While admin_history is a mapping table to join agileuser tables with USERID, to admin nodes tables with OWNERID and to admin_history_details table with DETAILID.
1
2
3
4
5
6
7
8
9
10
11
12
SQL> desc admin_history
Name Null Type
--------- -------- ------
ID NUMBER
USERID NUMBER
TIMESTAMP DATE
ACTIONID NUMBER
TYPE NUMBER
OWNERID NUMBER
DETAILID NUMBER
CREATED NOT NULL DATE
LAST_UPD NOT NULL DATE
.
1
2
3
4
5
6
7
8
9
SQL> desc admin_history_details
Name Null Type
-------- -------- ------------------
ID NUMBER
LANGID NUMBER
OBJECT VARCHAR2(600 CHAR)
DETAILS CLOB
CREATED NOT NULL DATE
LAST_UPD NOT NULL DATE
ACTIONID in admin_history table has 12 types of actions. They are:
1
2
3
4
5
6
7
8
9
10
11
12
1 : 'Create'
2 : 'Modify'
3 : 'Delete'
4 : 'SaveAs'
5 : 'CopyFrom'
6 : 'Undelete'
7 : 'Login'
8 : 'Reorder'
9 : 'Export'
10 : 'Purge'
11 : 'Import'
12 : 'Push'
TYPE in admin_history has 3 kinds of nodes. They are:
1
2
3
0: all nodes in nodetable table
1: list data in listname table
2: personal criteria data in pers_criteria_node table
We connect these 3 TYPE (3 tables) in a single table with UNION ALL in a sql, making it a single table: object .
1
2
3
4
5
6
7
8
(
select n.id, n.name, e.entryvalue object_type, 0 type_id
from nodetable n, listentry e where n.objtype=e.entryid and e.parentid=101
union all
select id, name, 'List' object_type, 1 type_id from listname
union all
select id, name, 'PersonalCriteria' object_type, 2 type_id from pers_criteria_node
) object
Finally, we join object table with admin_history, admin_history_details and agileuser tables. We have below.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
select
u.loginid,
case ah.actionid
when 1 then 'Create'
when 2 then 'Modify'
when 3 then 'Delete'
when 4 then 'SaveAs'
when 5 then 'CopyFrom'
when 6 then 'Undelete'
when 7 then 'Login'
when 8 then 'Reorder'
when 9 then 'Export'
when 10 then 'Purge'
when 11 then 'Import'
when 12 then 'Push'
end action,
object.object_type,
object.name,
ahd.details,
ah.created
from
admin_history ah,
admin_history_details ahd,
(
select n.id, n.name, e.entryvalue object_type, 0 type_id
from nodetable n, listentry e where n.objtype=e.entryid and e.parentid=101
union all
select id, name, 'List' object_type, 1 type_id from listname
union all
select id, name, 'PersonalCriteria' object_type, 2 type_id from pers_criteria_node
) object,
agileuser u
where
ah.detailid=ahd.id
and ah.type=object.type_id
and langid=0
and ah.ownerid=object.id
and u.id=ah.userid
order by ah.created desc;

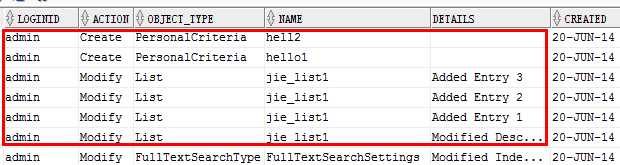

Run it and we have a detailed Admin History result from SQL, absolutely better than JavaClient Admin History page. You will like it.
